Wholesale Xingchen 135 Series Compression System Door Suppliers, Factory

SOUND INSULATION     Lv. 4

WATER TIGHTNESS     Lv. 6

AIR TIGHTNESS     Lv. 8

WIND PRESSURE RESISTANCE     Lv. 9

INSULATION PROPERTY     Lv. 6

Product Description

Product Features

The compact door features a simple and elegant appearance with smooth and natural lines, making it easy to adapt to various mainstream decoration styles such as modern, minimalist, and light luxury.
💡
1. The appearance of sliding windows, the performance of casement windows, supported opening methods: one fixed and one sliding, middle fixed and side sliding, one fixed and one sliding + corner without columns.
💡
2. Rotate the handle, and the door leaf will move horizontally as a whole. Press the door frame tightly around it, and it will close just like an aircraft cabin door. Sealing strips are installed around the door frame, which press against the edges of the door leaf to eliminate gaps and achieve a high degree of sealing.
💡
3. The whole-window glue injection process is adopted, with two-component corner glue injected to firmly bond the profiles and simultaneously seal the corner gaps to prevent rainwater from seeping through these gaps.
💡
4. The Premium series is equipped with a buffer device. When the door leaf approaches the door frame, it will automatically slow down and close to prevent hands from being pinched, making it safer.
💡
5. Made of primary aluminum material and treated with Akzonobel powder coating on the surface, it features excellent corrosion resistance and strength, and can adapt to various complex environments.
💡
6. During the opening and locking process of the compact door, it moves 8mm laterally, providing a stronger seal and resolving the contradiction between the sealing performance and the comfort of operation of ordinary sliding doors.
💡
7. It adopts an upper lift and lower press design and a lower rail high and low rail design, which is not only waterproof but also wind-resistant, and has stronger drainage.
💡
8. It is equipped with a full set of imported brand hardware, enhanced locking and upgraded sealing, which can reach the RC2 safety anti-picking level.
A compact door, when opened and closed, not only ensures the interactivity of the space but also brings a more beautiful visual effect, offering a rich and diverse new experience.

Product Configuration

Border width 135mm.
Profile wall thickness 2.0mm.
Strip configuration EPDM sealing rubber strip
Glass configuration 5mm+20A+5mm
Hardware system ROTO Hardware(GER)
Opening mode Sliding

Product Video

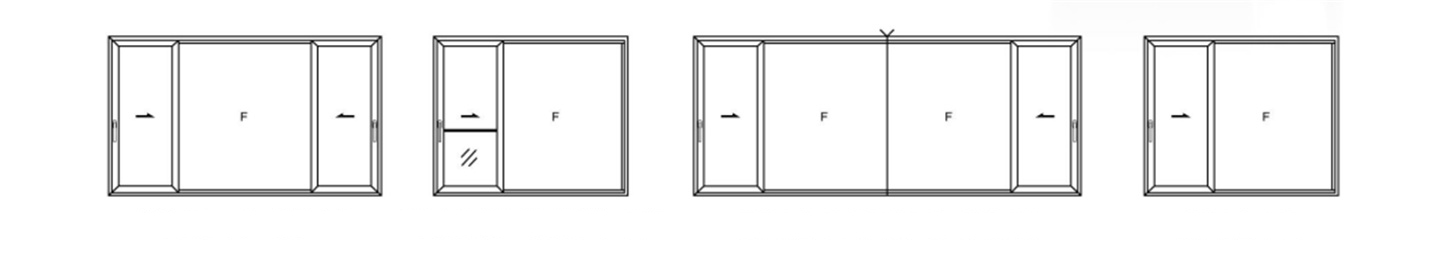

Customizable Styles

Customizable Styles

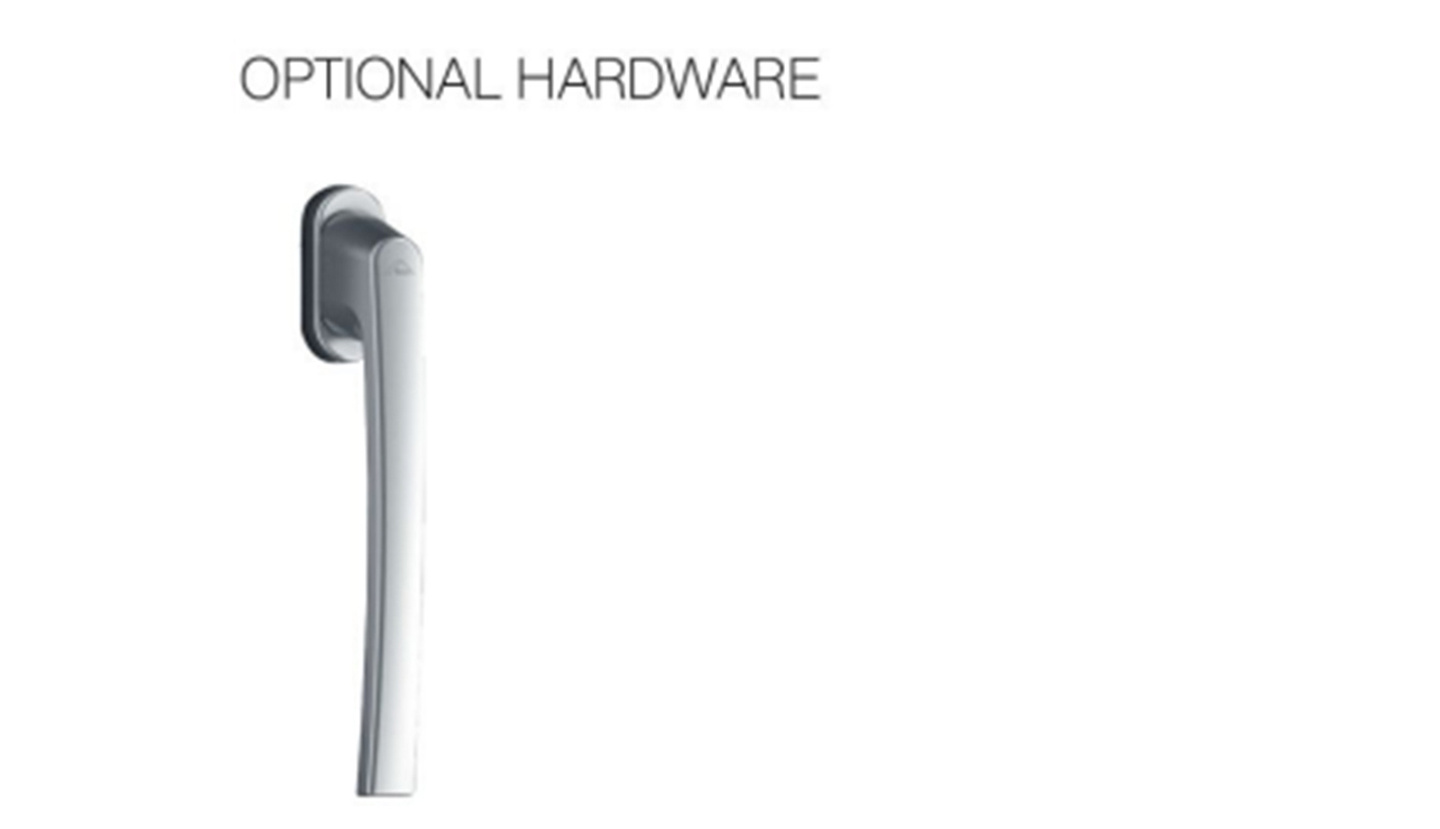

Hardware Accessories

Hardware Accessories

Available Colors

Porcelain swimming gray
Porcelain swimming gray
coffee
Coffee
Galactic Black
Galactic Black
Moonlight Grey
Moonlight Grey
champagne gold
Champagne Gold
Elegant Grey
Elegant Grey
Warm White
Warm White

Certificates

Certificate 1
Certificate 2
Certificate 3

Frequently Asked Questions

What are the main opening methods supported by this compact door?
The door supports several opening configurations including one fixed and one sliding, middle fixed and side sliding, as well as a column-free corner setup (one fixed and one sliding + corner without columns) to suit diverse spatial structures.
How does the sealing and locking mechanism work?
By rotating the handle, the door leaf moves 8mm horizontally as a whole to press tightly against the frame, compressing the integrated EPDM sealing rubber strips. This eliminates gaps and achieves an exceptionally high level of cabin-like sealing.
What are the key materials and hardware configurations?
It is manufactured using high-strength primary aluminum profiles with a 2.0mm wall thickness and 135mm border. The surface is coated with Akzonobel powder coating, and it features a 5mm+20A+5mm glass configuration paired with a high-quality imported German ROTO hardware system.
Is this compact door suitable for harsh weather conditions?
Yes. The door incorporates a high-low track drainage design alongside an upper-lift and lower-press mechanism. Together with the whole-window corner glue injection, it offers outstanding waterproofing, wind resistance, and drainage capabilities.
What safety features does the door offer?
It features a built-in safety buffer device that slows down the door leaf automatically when closing to prevent hand pinching. Furthermore, its upgraded locking point design meets the RC2 safety anti-picking standard for enhanced protection.
