Sliding doors can bring excellent ventilation and landscape effects to balconies. However, traditional sliding doors are difficult to meet the requirements of large door leaf area and sealing performance. We have launched the light and shadow panoramic sliding door, which combines functionality and design, setting a new standard for panoramic sliding. The Light and Shadow series can be opened by push-pull or electric sliding.
The frame visible surface of the Light and Shadow series panoramic door can be completely hidden into the ceiling and floor. The 32mm reinforced flush hook, while the small hook with non-flush finish is only 14mm, is not only aesthetically pleasing and slim but also has a humanized handle function.
The Light and Shadow series features spacers made of brand-new materials, which integrate anti-collision, heat insulation and sealing properties. This novel design ensures a seamless fit at the hook and hook parts.
After the door leaf is closed, the Z-shaped interlocking structure ensures the thermal and sealing performance of the mullion part within an extremely narrow visible area of 32mm.
The suspended linear rail technology, the clamping high-load-bearing pulley block and the ability to continuously add pulleys can support a large area of glass, making the sliding door more transparent.
The 45-degree beveled Angle screw connection technology is adopted to ensure the strength of the entire window.
Hidden light lock, the hardware components are located at the hook lock position. Under the premise of ensuring the basic lock, the fully hidden frame is used to achieve a more extreme field of vision.
The 7.65 linear track is designed with a large load-bearing capacity and high water tightness, allowing the sweeping robot to pass through without any obstacles.
The maximum plate thickness is 41mm, allowing for the application of 12mm glass to achieve large-sized fan design, with a maximum load capacity of 1000KG per fan.
It features high-load-bearing two-track, four-track and three-track, six-track structures. The cover plate is equipped with humanized functions such as installation without disassembly and easy cleaning and disassembly. Whether it's the hustle and bustle of the street or the noise from neighbors, all can be "shut out", providing you with a quiet and comfortable living environment.
Product Configuration
Border width
Two-track occupies 138mm of wall space, and three-track occupies 206mm.
Profile wall thickness
Track 2.2mm, fan 3.0mm.
Strip configuration
EPDM sealing rubber strip
Glass configuration
5mm+24A+5mm
Hardware system
Premium System Hardware
Screen Configuration
Diamond Net / Imported PET 48-mesh High-definition Screen
Opening mode
Push-pull / Electric push-pull.
Video Demonstration

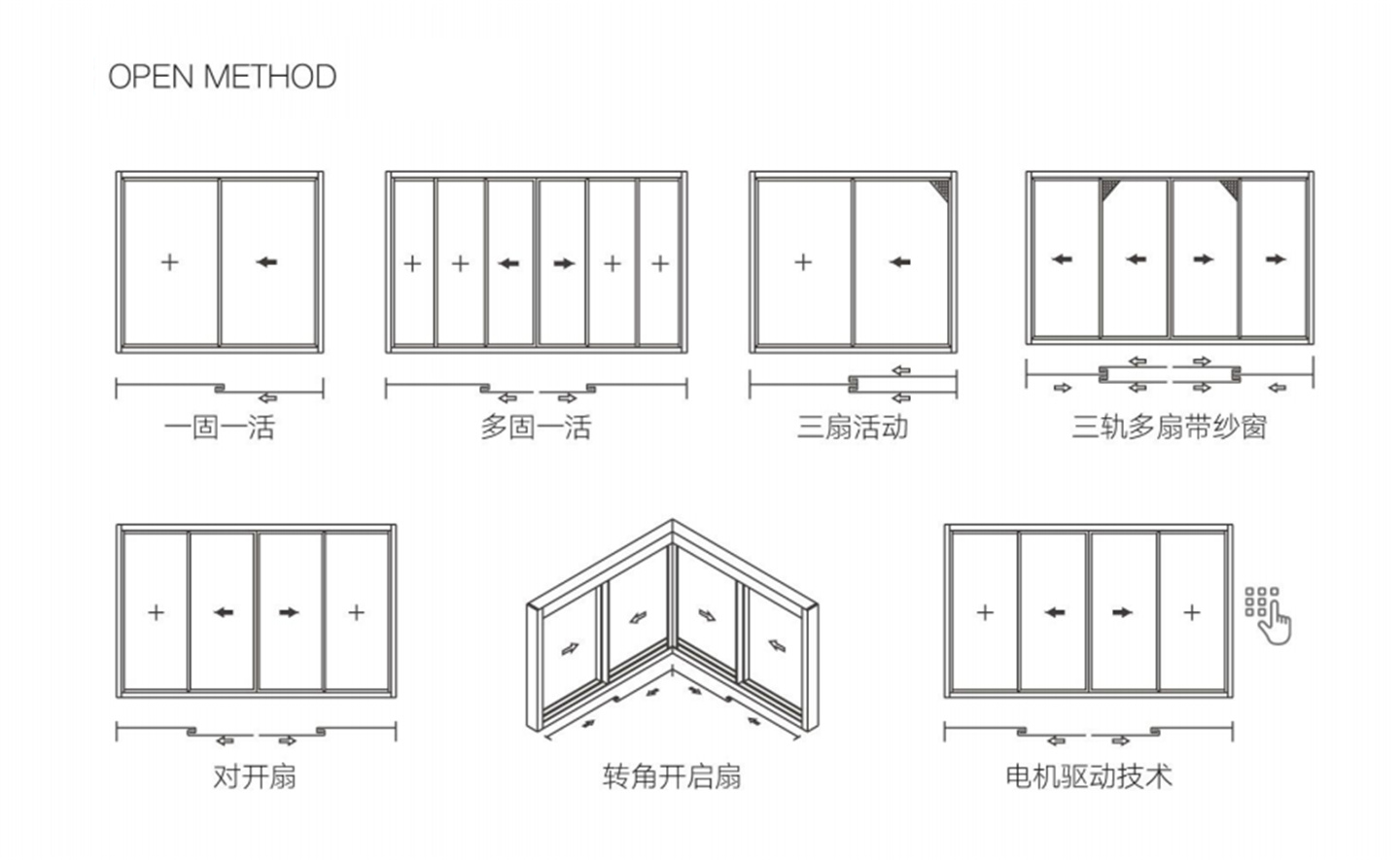

Customizable Styles
Color Options
Porcelain swimming gray
Coffee
Galactic Black
Moonlight Grey
Champagne Gold
Classic Grey
Warm White
Certificates
Frequently Asked Questions
What are the main configuration sizes of the Light and Shadow series?
The profile wall thickness features a 2.2mm track and a 3.0mm fan. In terms of width, the two-track occupies 138mm of wall space, while the three-track occupies 206mm.
Can the sliding door handle heavy loads and large glass panels?
Yes. With a maximum plate thickness of 41mm, it allows for the application of 12mm glass. The system uses high-load-bearing pulley blocks and linear rail technology to support a maximum load capacity of 1000KG per door leaf.
How does it ensure thermal performance with such a narrow view?
It uses a Z-shaped interlocking structure that maintains high thermal and sealing performance in the mullion area within an extremely slim 32mm visible profile.
Is the track layout design flat enough for vacuum or sweeping robots?
Yes, the design features a 7.65 linear track optimized for high water tightness and a flat structure that lets sweeping robots cross without obstacles.
What opening modes and screen structures are available?
The doors support both manual push-pull and electric push-pull opening modes. For screen protection, you can choose between a Diamond Net and an imported PET 48-mesh high-definition screen.
