Features a flush fan frame structure to reduce exposed contact points. Both upper and lower parts of the door leaf are made of the same profile without extra overlapping compensating materials.
The brand-new profile concept integrates two different facade visual effects and can achieve completely concealed hardware components.
Reinforcing middle columns are installed between the door panels, ingeniously integrating mechanical components into the door body to enhance wind pressure resistance.
The door structure bears weight at the bottom and guides sliding at the top. The steel pulley parts feature excellent load-bearing and corrosion resistance capabilities.
Custom-made hardware for the folding doors maximizes component concealment while meeting high requirements of functionality and design.
Designed with a dedicated anti-pinch structure to protect hands and ensure a reassuring, user-friendly experience.
Profile surfaces are treated with Akzonobel powder coating, delivering strong weather resistance and a premium frosted texture.
| Border width | 80mm. |
| Profile wall thickness | 2.0mm. |
| Strip configuration | EPDM sealing rubber strip |
| Glass configuration | 5mm+12A+5mm |
| Hardware system | Premium High-Performance Hardware |

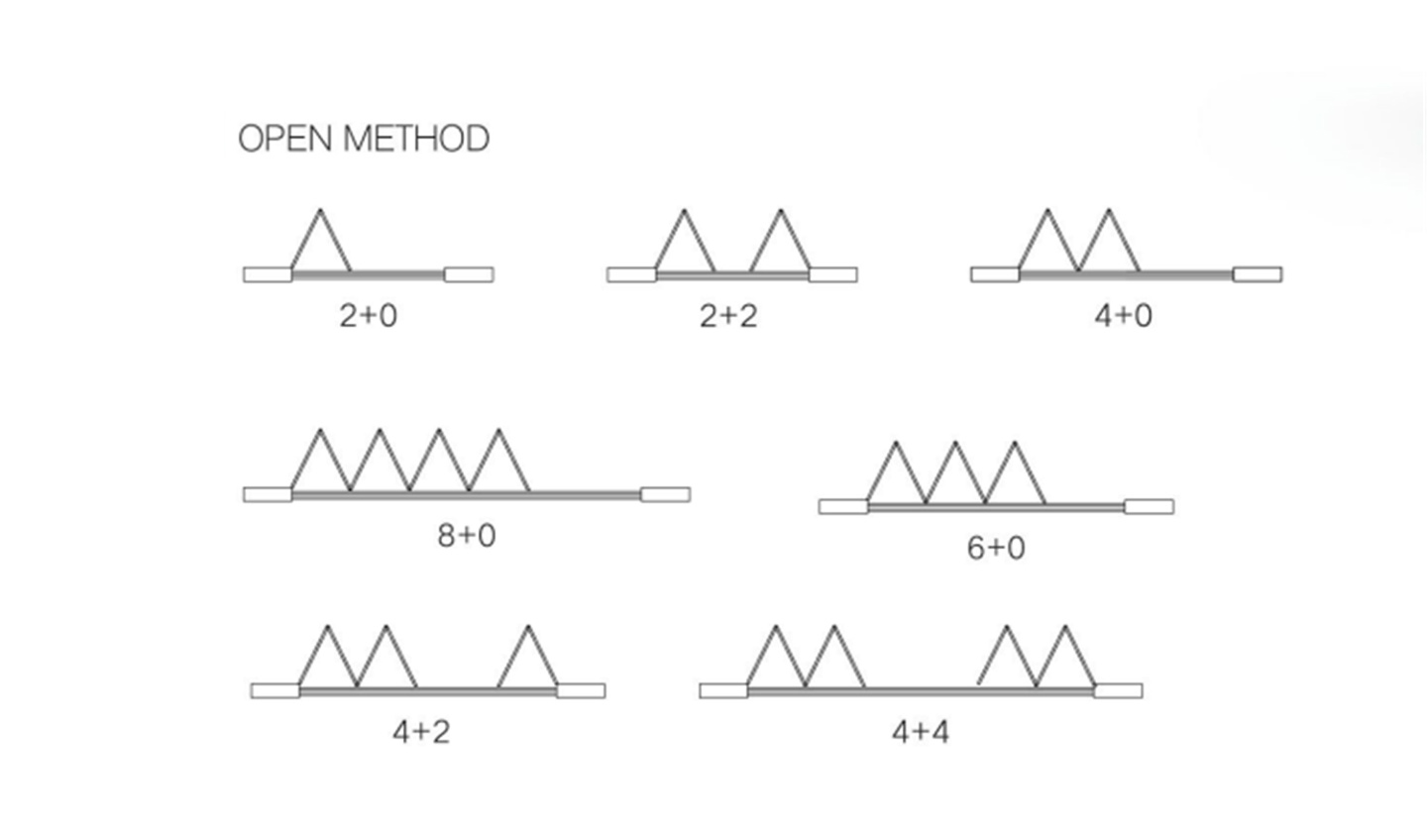

| Opening mode | Inward folding glass sash / Outward folding glass sash |
Porcelain Swimming Gray
Coffee
Galactic Black
Moonlight Grey
Champagne Gold
Classic Grey
Warm White
QWhat is the standard glass configuration for these folding sliding doors?
The standard configuration is a double-glazed system measuring 5mm + 12A + 5mm. This design offers excellent soundproofing, thermal efficiency, and overall durability.
QCan the folding doors open both inward and outward?
Yes, the system is designed to support both inward and outward folding configuration styles. This flexibility helps optimize available indoor and outdoor floor space.
QWhat type of surface finish is used on the door profiles?
The profile surfaces undergo premium Akzonobel powder coating treatment. This provides exceptional resistance to weather elements along with a sleek, modern frosted texture.
QHow does the system ensure safety during operation?
The folding door profiles and mechanical components are designed with an integrated anti-pinch safety mechanism, reducing the risk of hand injuries during operation.
QHow is the structural load distributed in the sliding system?
The structure utilizes a bottom load-bearing and top-guided sliding mechanism. This vertical coordinated force application, combined with robust steel pulleys, ensures durability and smooth, effortless sliding.
QWhat are the key technical parameters for the door frames?
The system features a border width of 80mm and a robust profile wall thickness of 2.0mm. It is fitted with highly durable EPDM sealing rubber strips for maximum weather tightness.
